Pillow Block Assembly in SOLIDWORKS

Project Overview

This project showcases the 3D modeling and assembly of a Pillow Block Bearing using SOLIDWORKS, focusing on precision, stability, and manufacturability. The design ensures optimal support for rotating shafts, commonly used in industrial applications.

Project Highlights

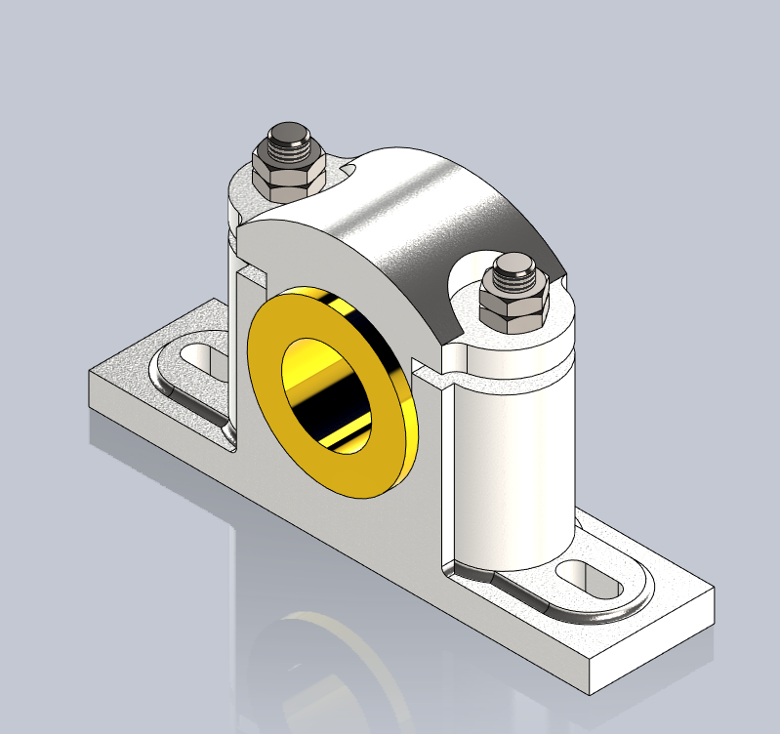

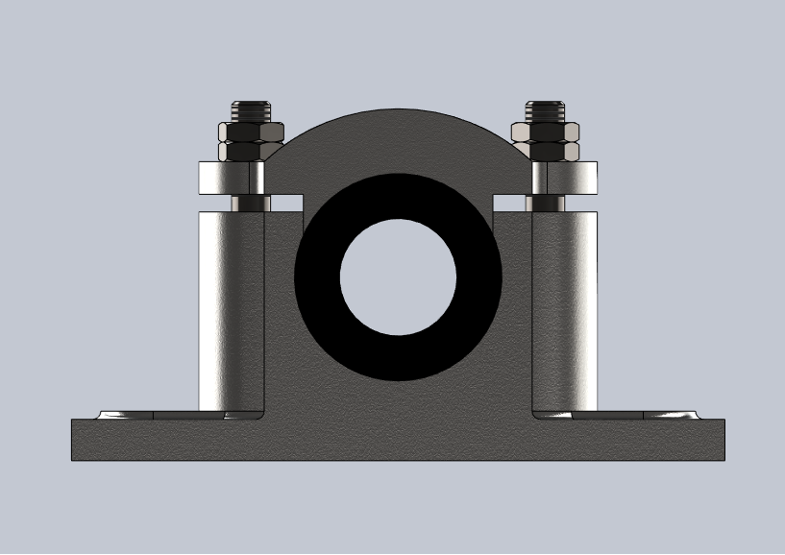

• 3D Assembly: Modeled in SOLIDWORKS, incorporating individual components such as the bearing housing, shaft support, fasteners, and inserts.

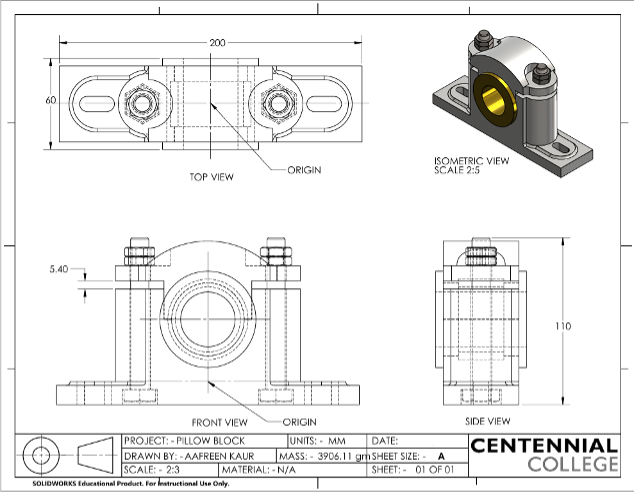

• Engineering Drawings: A detailed technical drawing was created to define dimensions, tolerances, and material specifications for manufacturing.
• Component Features: Includes bore holes, locking nuts, and a bearing insert to facilitate smooth rotation and secure shaft placement.
